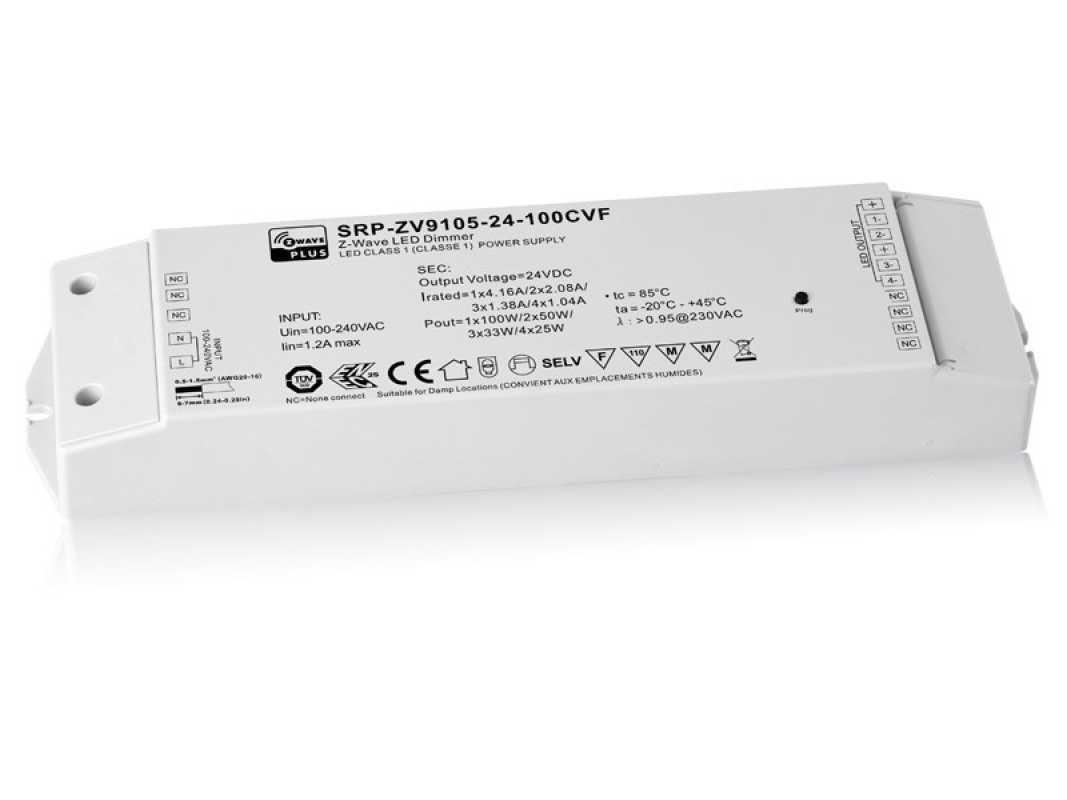

Constant Voltage 100W Z-Wave Dimmable PWM RGBW LED Driver SRP-ZV9105-24-100W-CVF
SRP-ZV9105-12-100W-CVF is an UL and ENEC approved 100W dimmable PWM RGBW LED driver with 4 channels 12VDC/24VDC
constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%.
It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with Z-Wave Plus
control interface which can be included to Z-Wave network and be controlled from your controller or hub interface. The driver can be
compatible with universal Z-Wave gateway or primary controller. In addition, the Z-Wave device can bind with Z-Wave remote or wall
controllers and controlled by the them. The driver can control RGBW LED lighting. UL and ENEC certification ensures high
safety performance of the driver to be used worldwide.
Key Features
- Dimmable 12V/24V PWM RGB LED Driver, Max. output power 100W
- UL and ENEC certification
- 100-277VAC universal input
- 4 channels 12VDC/24VDC constant voltage output
- Class 1 power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%
- Z-Wave Plus control interface which can be included to Z-Wave network and be controlled from your controller or hub interface
- Compatible with universal Z-Wave gateway or primary controller
- Can bind with Z-Wave remote or wall controllers and controlled by the them
- To control constant voltage RGBW LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
