Constant Voltage 50W Dimmable PWM CCT LED Driver with RF SRP-1009-24-50W-CVF

Constant Voltage 50W Dimmable PWM CCT LED Driver with RF SRP-1009-24-50W-CVF

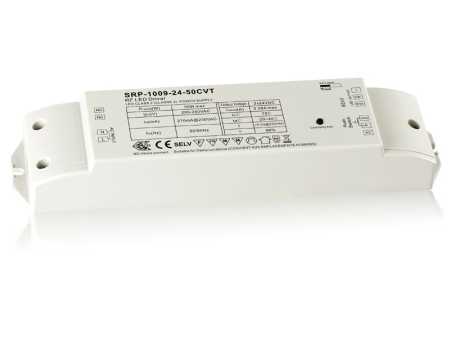

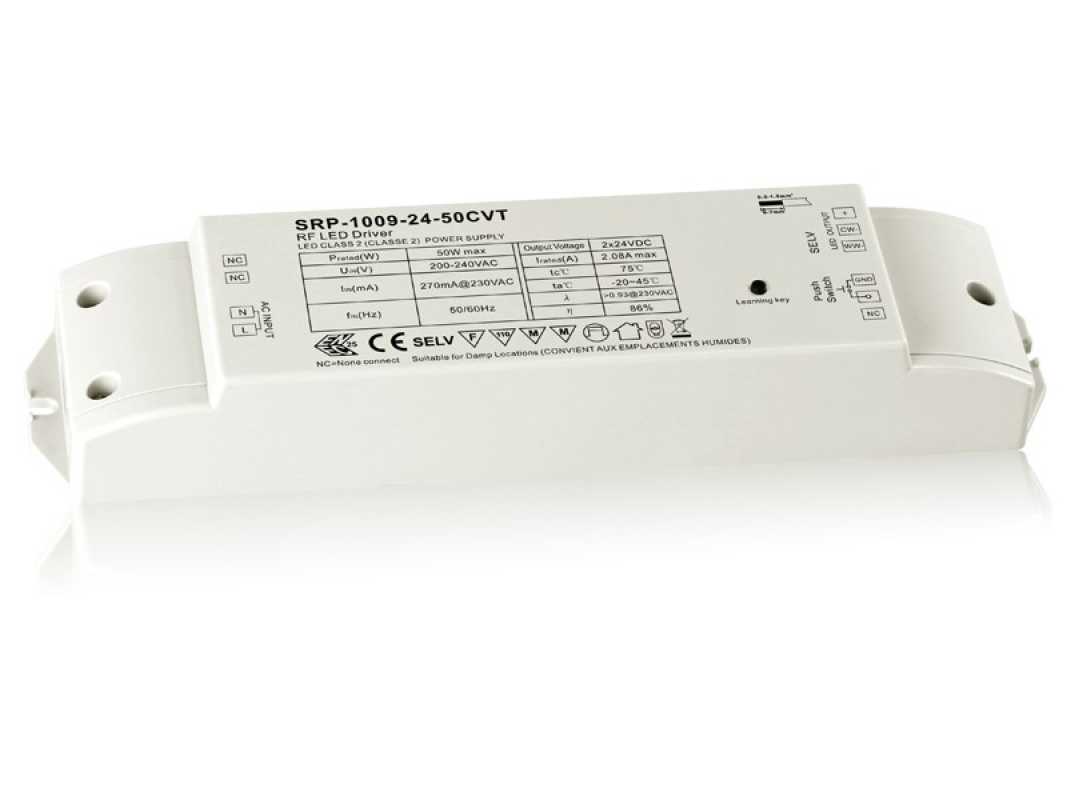

SRP-1009-24-50CVT is a 50W Dimmable Constant Voltage LED Driver with 2 channels 24VDC output, 12VDC version is also available, which enables it to be suitable for CCT LED lights with different voltage. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. Plus it has push dim function while being connected with a push switch.

Key Features

• Dimmable Constant Voltage LED Driver, Max. output power 50W
• 2 channels 12VDC or 24VDC constant voltage output
• Class Ⅱ power supply, full isolated plastic case
• Rubycon capacitors
• Built-in active PFC function
• High power factor and efficiency, PF > 0.9, Efficiency > 85%
• RF control interface and can be compatible with a variety of SR-1009 series RF remotes
• Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
• To control constant voltage CCT LED lighting
• Smooth and deep dimming to 0.1% without flickering, no buzzing noise
• Push dim function while being connected with a push switch
• IP20 rating, suitable for indoor LED lighting applications
• Radio frequency available: 869.5/434/916.5MHz
